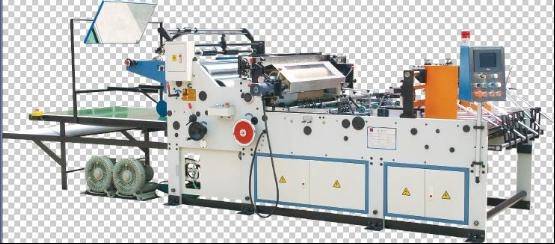

Window Ptatching Machine is widely used in the patching to packinbg paper articles with window or without window , such as ,phone box ,wine box ,napkin box ,toy box ,clothes box ,milk case ,card etc.
PLC,man-machine interfaces ,photo-electric tracing and central control are adopted on the machine to realize the automatic paper feeding ,conveying ,window gluing (or the non-window part-gluing ,and part paper-pasting), film cutting ,patching ,collecting of the die-cut paper ,The machine also has the function for double or three-side window patching (especially the prepared cutting and creasing to film in advance ,which can avoid furrows when wrapping boxes).
The paper feeding part incorporating inported clutch has realized inch-paper-feeding and precise feeding position.
Specifications:
|
Max paper size
|
650×1100 mm
|
|
Min paper size
|
140×140 mm
|
|
Max film size
|
520×380mm
|
|
Min film size
|
80×60mm
|
|
Film sheet thickness
|
0.05-0.20mm
|
|
Max working speed
|
5800s/h
|
|
Cardboard
|
250-500g/m2
|
|
Corrugated paper
|
≤3.5mm
|
|
Total weight
|
2380kg
|
|
Total power
|
10kw
|
|
Overall dimensions
|
4998×1998×1750mm
|
